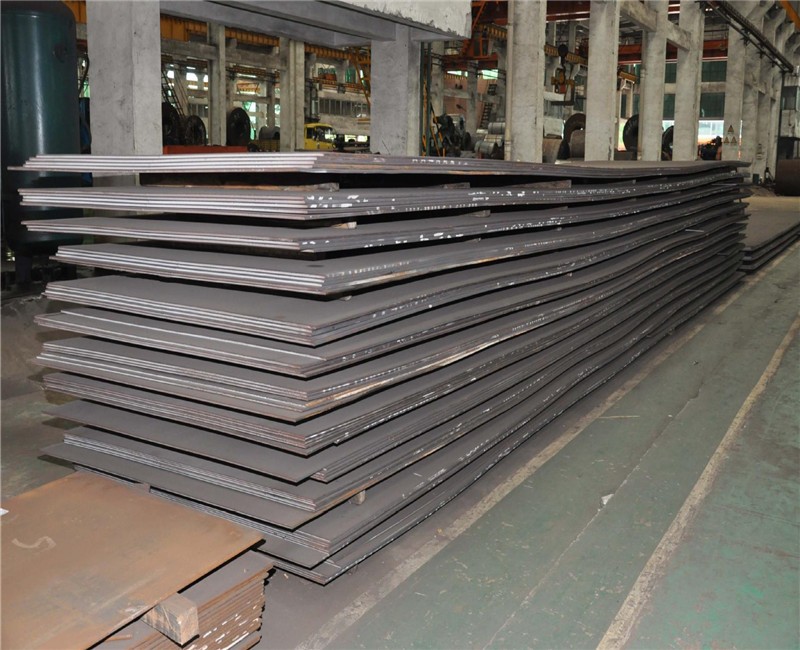

Ss400 S235jr S355jr A53 A36 4X8 Hot Rolled Carbon Ms Mild Steel
Sheet Plate
| Products | Corten Steel Plate |
Standard
grade | ASTM: Corten A; Corten B; A588Gr.A/Gr.B/Gr.C/ Gr.K; A242; A606 Type
4;
A709 Gr 50W; |
|
EN10025: S235J0W; S235J2W; S355J0W; S355J2W; S355K2W; S355J0WP;
S355J2WP; S355J2G1W; S355J2G2W; S355K2G1W, S355K2G2W; |
|
|
JIS G3114: SMA400AW; SMA400BW; SMA400CW; SMA490AW; SMA490BW;
SMA490CW; SMA570W; SMA570P; |
|
|
| JIS G3125: SPA-H; SPA-C; |
GB/T 4171: Q235NH; Q265GNH; Q310GNH; Q295NH; Q295GNH;
Q355NH;Q355GNH;
Q415NH; Q460NH; 1500NH; Q550NH; |
|
| TB/T 1979: 09CuPCrNi-A; 09CuCrNi-B; 05CuPCrNi; |
| Q/BQB 340: B460NQR; B490NQR; B480GNQR; B600GNQR; |
| Thickness | Cold Rolled 0.5-2mm Hot Rolled 2-300mm (2-100mm usually used) |
| Width | 1000-3000mm (1000-2200mm usually used) |
| Length | 1000-12000mm or as your request |
| Surface | Clean, finishing,blasting and painting according to customer
requirement |
| Process | Hot-rolled, Controlled rolling, Normalizing, Annealing, Tempering,
Quenching, N+T, Q+T,
and other delivery states are available as required |
|
| Certificate | API,ISO,SGS,BV,CE etc |
| Quality | MTC will be provided with goods, third part inspection is
acceptable,
for example BV,SGS. |
|
| Package | Standard export seaworthy package,suit for all kinds of
transport,or as required. |
| Container Size | 20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High) |
| 40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) |
| Trade term | Ex-Work,FOB,CNF,CFR,CIF,etc |
| Application | Widely used in a variety of architectural and engineering
structures,such as |
| 1.) metal constructions such as buildings,bridges,ships; |
| 2.) transmission tower, reaction tower; |
| 3.) lifting transportation machinery; |
| 4.) industrial furnace;boilers |
| 5.) container frame, warehouse goods shelves, etc |
Grade and chemical composition of high quality carbon structural
steel:
| Item | code | Grade | chemical composition(%) |
| C | Si | Mn | Cr | M | Cu |
| ≤ |
| 1 | U20080 | 08F | O.05～O.11 | ≤0.03 | 0.25～0.50 | 0.10 | O.30 | 0.25 |
| 2 | U20100 | 10F | O.07～O.13 | ≤O.07 | O.25～O.50 | O.15 | 0.30 | 0.25 |
| 3 | U20150 | 15F | 0.12～O.18 | ≤O.07 | 0.25～O.50 | 0.25 | 0.30 | 0.25 |
| 4 | U20082 | 08 | 0.05～O.11 | O.17～O.37 | O.35～O.65 | O.10 | O.30 | O.25 |
| 5 | U20102 | 1O | 0.07～O.13 | 0.17～O.37 | 0.35～0.65 | 0.15 | O.30 | O.25 |
| 6 | U20152 | 15 | O.12～0.18 | 0.17～O.37 | O.35～0.65 | O.25 | O.30 | O.25 |
| 7 | U20202 | 20 | O.17～0.23 | 0.17～0.37 | 0.35～0.65 | O.25 | O.30 | O.25 |
| 8 | U20252 | 25 | O.22～0.29 | 0.17～O.37 | O.50～O.80 | O.25 | O.30 | 0.25 |
| 9 | U20302 | 30 | O.27～O.34 | O.17～O.37 | O.50～O.80 | 0.25 | O.30 | 0.25 |
| 10 | U20352 | 35 | O.32～0.39 | O.17～O.37 | O.50～O.B0 | 0.25 | O.30 | 0.25 |
| 11 | U20402 | 40 | 0.37～O.44 | 0.17～O.37 | O.50～O.80 | O.25 | O.30 | O.25 |
| 12 | U20452 | 45 | O.42_O.50 | O.17～O.37 | 0.50～0.80 | 0.25 | O.30 | 0.25 |
| 13 | U20502 | 50 | 0.47～0.55 | 0.17～O.37 | 0.50～0.80 | 0.25 | O.30 | O.25 |
| 14 | U20552 | 55 | O.52～0.60 | O.17～O.37 | O.50～0.80 | O.25 | 0.30 | O.25 |
| 15 | U20602 | 60 | 0.57～O.65 | 0.17～O.37 | 0.50～O.80 | O.25 | O.30 | 0.25 |
| 16 | U20652 | 65 | O.62～0.70 | 0.17～0.37 | O.50～O.80 | O.25 | O.30 | O.25 |
| 17 | U20702 | 70 | O.67～0.75 | 0.17～0.37 | O.50～O.80 | 0.25 | O.30 | O.25 |
| 18 | U20752 | 75 | O.72～0.80 | 0.17～O.37 | 0.50～0.80 | 0.25 | O.30 | O.25 |
| 19 | U20802 | 80 | O.77～0.85 | O.17～0.37 | O.50～O.80 | 0.25 | O.30 | 0.25 |
| 20 | U20852 | 85 | O.82～0.90 | O.17～0.37 | 0.50～O.80 | O.25 | O.30 | O.25 |
| 21 | U21152 | 15№ | O.12～O.18 | O.17～O.37 | O.70～1.00 | O.25 | O.30 | 0.25 |
| 22 | U21202 | 20Mn | 0.17～O.23 | O.17～O.37 | O.70～1.00 | O.25 | 0.30 | O.25 |
| 23 | U21252 | 25Mn | O.22～O.29 | 0.17～0.37 | O.70～1.00 | O.25 | O.30 | O.25 |
| 24 | U21302 | 30Mn | 0.27～O.34 | O.17～0.37 | 0.70～1.00 | O.25 | O.30 | 0.25 |
| 25 | U21352 | 35Mn | O.32～O.39 | O.17～O.37 | O.70～1.00 | 0.25 | O.30 | O.25 |
| 26 | U21402 | 40Mn | O.37～0.44 | O.17～0.37 | O.70～1.00 | 0.25 | 0.30 | O.25 |
| 27 | U21452 | 45Mn | 0.42～0.50 | 0.17～O.37 | 0.70～1.00 | O.25 | O.30 | O.25 |
| 28 | U21502 | 50Mn | O.48～0.56 | O.17～O.37 | O.70～1.00 | 0.25 | 0.30 | 0.25 |
| 29 | U21602 | 60Mn | 0.57～0.65 | O.17～O.37 | 0.70～1.00 | 0.25 | 0.30 | 0.25 |
| 30 | U21652 | 65Mn | 0.62～0.70 | 0.17～O.37 | O.90～1.20 | O.25 | 0.30 | 0.25 |
| 31 | U21702 | 70Mn | 0.67～O.75 | 0.17～0.37 | 0.90～1.20 | O.25 | O.30 | O.25 |
S235JR steel plate
S235JR steel plate is the European standard non-alloy structural
steel, equivalent to the NATIONAL standard Q235B, that is, the
carbon structure steel with low carbon content, used for welding,
bolt connection, riveting structure more.
S235JR steel plate chemical composition:
C % : 0.17-0.19;
Mn % : 0.14-0.15;
0.035 0.045; P % :
% S: 0.035-0.045;
N %, 0.012-0.14;
Cu % : 0.40-0.45;
S235JR steel plate application analysis:
With good plasticity, toughness, weldability, cold stamping
performance and a certain strength, good cold bending performance.
Low temperature performance is not good (impact test is 20℃).
Widely used for general requirements of parts and welded structural
parts. Such as the force is not big pull rod, connecting rod, pin,
shaft, screw, nut, ring, bracket, frame, building structure,
bridge, etc.
