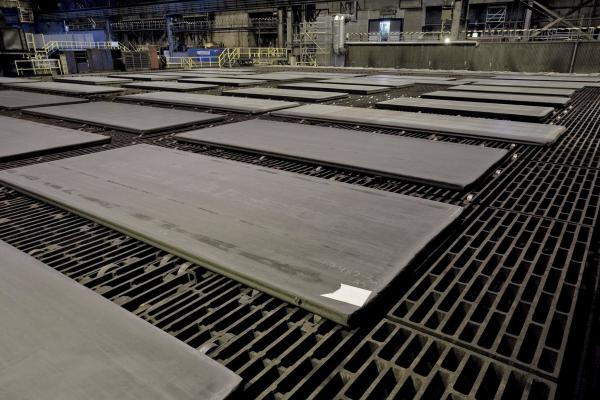

1.Carbon Steel Plate
Carbon steel plate usually been considered as the steel that does
not contain much alloy steel elements. Generally elements are C,
Mn, P, S, Si, besides these there are no minimum limits for
elements of Al, Cr, Ni, Mo, V etc.
Carbon steel plates are available in different grades depending on
the carbon content and strength.
There are low, medium, and high carbon steel plates. The more
carbon content, the more durable and stronger the plate becomes.
There are further sub-categories depending on thickness and usage
as well as the formation process. Usually carbon steel plates vary
from 0.4 mm to 80 mm in thickness and 1000 mm to 25000 mm width,
and they can be of length up to 12 meters. But the length is
customizable which helps the customers to put them into various
applications. One can also make cold rolled steel coils from them.
2.Alloy Steel plate----42CrMo4 alloy steel plate
Chemical composition % of steel 42CrMo4 (1.7225): EN 10083-3-2006
| C | Si | Mn | P | S | Cr | Mo |
| 0.38 - 0.45 | max 0.4 | 0.6 - 0.9 | max 0.025 | max 0.035 | 0.9 - 1.2 | 0.15 - 0.3 |
Mechanical properties of steel 42CrMo4 (1.7225)
| Nominal diameter (mm): | to 16 | 16 - 40 | 40 - 100 | 100 - 160 | 160 - 250 | 250 - 330 | 330 - 660 |
|
| Rm - Tensile strength (MPa) (+QT) | 1100-1300 | 1000-1200 | 900-1100 | 800-950 | 750-900 | 700 | 600 |
| Nominal thickness (mm): | 0.3 - 3 |
|
| Rm - Tensile strength (MPa) (+A) | 620 |
|
| Rm - Tensile strength (MPa) (+AC) | 630 |
| Nominal thickness (mm): | to 8 | 8 - 20 | 20 - 50 | 50 - 80 |
|
| Rm - Tensile strength (MPa) (+QT) | 1100 | 1000 | 900 | 800 |
|
| Rm - Tensile strength (MPa) (+C) | 720 |
|
| Rm - Tensile strength (MPa) (+LC) | 670 |
| Nominal diameter(mm): or for flat products thickness: to 8; 8-20;
20-60; 60-100; 100-160; | to 16 | 16 - 40 | 40 - 100 | 100 - 160 | 160 - 330 | 330 - 660 |
|
Re - Upper yield strength or
Rp0.2 - 0.2% proof strength (MPa) (+QT) | 900 | 750 | 650 | 500-550 | 460-500 | 390 |
| Nominal thickness(mm): | 0.3 - 3 |
|
| Rp0.2 0.2% proof strength (MPa) (+A) | 480 |
|
| KV - Impact energy (J) longitud., (+QT) | +20°
30-35 |
|
| KV - Impact energy (J) transverse, (+QT) | +20°
22 |
| Nominal thickness (mm): | 0.3 - 3 |
|
| A - Min. elongation Lo = 80 mm (%) (+A) | 15 |
|
| A - Min. elongation at fracture (%) transverse, (+QT) | 10-14 |
|
| A - Min. elongation at fracture (%) (+C) | 4 |
|
| A - Min. elongation at fracture (%) (+LC) | 6 |
| Nominal thickness (mm): | to 16 | 16 - 40 | 40 - 100 | 100 - 160 | 160 - 250 |
|
| A - Min. elongation Lo = 5,65 √ So (%) (+QT), round products | 10 | 11 | 12 | 13 | 14 |
| Nominal diameter (mm): or for flat products thickness: to 8; 8-20;
20-60; 60-100; 100-160; | to 16 | 16 - 40 | 40 - 100 | 100 - 160 | 160 - 250 |
|
| Z - Reduction in cross section on fracture (%) (+QT) | 40 | 45 | 50 | 50 | 55 |
|
| Z - Reduction in cross section on fracture (%) (+AC) | 57 |
| Brinell hardness (HBW): (+S) | 255 |
| Brinell hardness (HBW): (+A) | 241 |
| Vickers hardness ( HV): (+A) | 195 |
| Vickers hardness ( HV): (+QT) | 340 - 490 |
Weldability: Bad weldability due to the high crack danger.
Hardenability: Medium-good hardenability, suitable for hot purposes
till a temperature of 500 C. It can be hardened in oil. |
