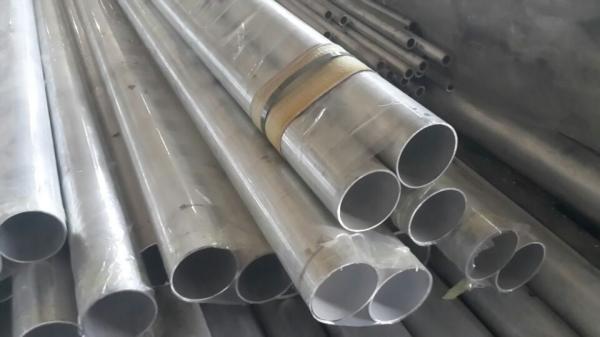

Aluminum Tube Alloy 6101 6003 T1 1.5mm Round Pipe Used for
communication, aerospace industry engineer and mechanic
1) Products:Round pipe,square pipe,flat pipe,special designed pipe
2) Standard :STM B209-04,B210M-05,B234M-04,B241-02,B221M-05a, AISI,
SUS, EN573-3-2003, JISH4000-2006,H4080-2006,H4040-2006, DIN,
GB/T3190-2008,3880.1-2006,6893-2000,3191-1998,4437.1-2000,
ASME,ISO3522-1984ISO ASTM
GB1A80,1070A,1100,2A01,2014A,1017A,5050,5154A,5083,6161,7A01,7A52,7075,
3)Grade:
1000series:1435,1050,1060,1070,1080,1100,etc
2000series:2011,2014,2017,2024,etc
3000series:3002,3003,3104,3204,3030,etc
5000series:5005,5025,5052,5040,5056,5083,etc
6000series:6101,6003,6061,6063,6020,6201,6262,6082,etc
7000series:7003,7005,7050,7075,etc
4) WT:0.3mm above
5) OD: up to 600mm
6) Length: per customer's request
7) Process: heat extrusion, welding, seamless
| Alloy | Si | Mg | Fe | Cu | Mn | Zn | Cr | Ti |
| 1050 | 0.25 | 0.05 | <0.40 | <0.05 | <0.05 | <0.05 | - | <0.03 |
| 3003 | 0.6 | - | 0.7 | 0.05 -0.20 | 1.0-1.5 | 0.10 | - | - |
| 5052 | 0.25 | 2.2-2.8 | 0.4 | 0.1 | 0.1 | 0.10 | 0.15-0.35 | - |
| 5083 | 0.4 | 4.0-4.9 | 0.4 | 0.1 | 0.4-1.0 | 0.25 | 0.05-0.25 | 0.15 |
| 6005 | 0.6-0.9 | 0.4-0.6 | <0.35 | <0.1 | <0.1 | <0.1 | <0.1 | <0.1 |
| 6061 | 0.4-0.8 | 0.8-1.2 | <0.70 | 0.15-0.4 | <0.15 | <0.25 | 0.04-0.35 | <0.05 |
| 6063 | 0.2-0.6 | 0.45-0.9 | <0.35 | <0.1 | <0.1 | <0.1 | <0.1 | <0.1 |
| 6082 | 0.7-1.3 | 0.6-1.2 | <0.50 | <0.1 | 0.4-1.0 | <0.2 | <0.25 | <0.10 |
| OD | OD Tolerance | ID Tolerance | Roundness | Straightness | Circular run-out | | Φ16-20 | ±0.02 | ±0.02 | 0.01↓ | 0.015↓ | 0.05↓ | | Φ20-30 | ±0.02 | ±0.02 | 0.01↓ | 0.015↓ | 0.05↓ | | Φ30-50 | ±0.05 | ±0.05 | 0.02↓ | 0.020↓ | 0.08↓ | | Φ50-80 | ±0.15 | ±0.10 | 0.05↓ | 0.025↓ | 0.10↓ |
|
|
Product Parameters
Physical properties and mechanical properties |
Tensile strength | 524Mpa |
0.2% yield strength | 455Mpa |
Elongation | 11% |
Modulus of elasticity E/Gpa | 71 |
1. High strength heat treatable alloy.
2. Good mechanical properties.
3. Good usability.
4. Easy to process and good wear resistance.
5. Good corrosion resistance and oxidation resistance. |
Applications of Seamless Aluminium Tube/Pipe
Aluminium seamless tube is used for virtually any type of
application, from high pressure and mechanical to architectural and
framing, typically used for pressure vessels, hydraulic cylinders,
compressed gas cylinders, driveshafts, lighting applications, and
bus conductors.
1.Critical pressure ratings
2.Demanding forming applications
3.Critical strength requirement
4.Uniform anodizing appearance
