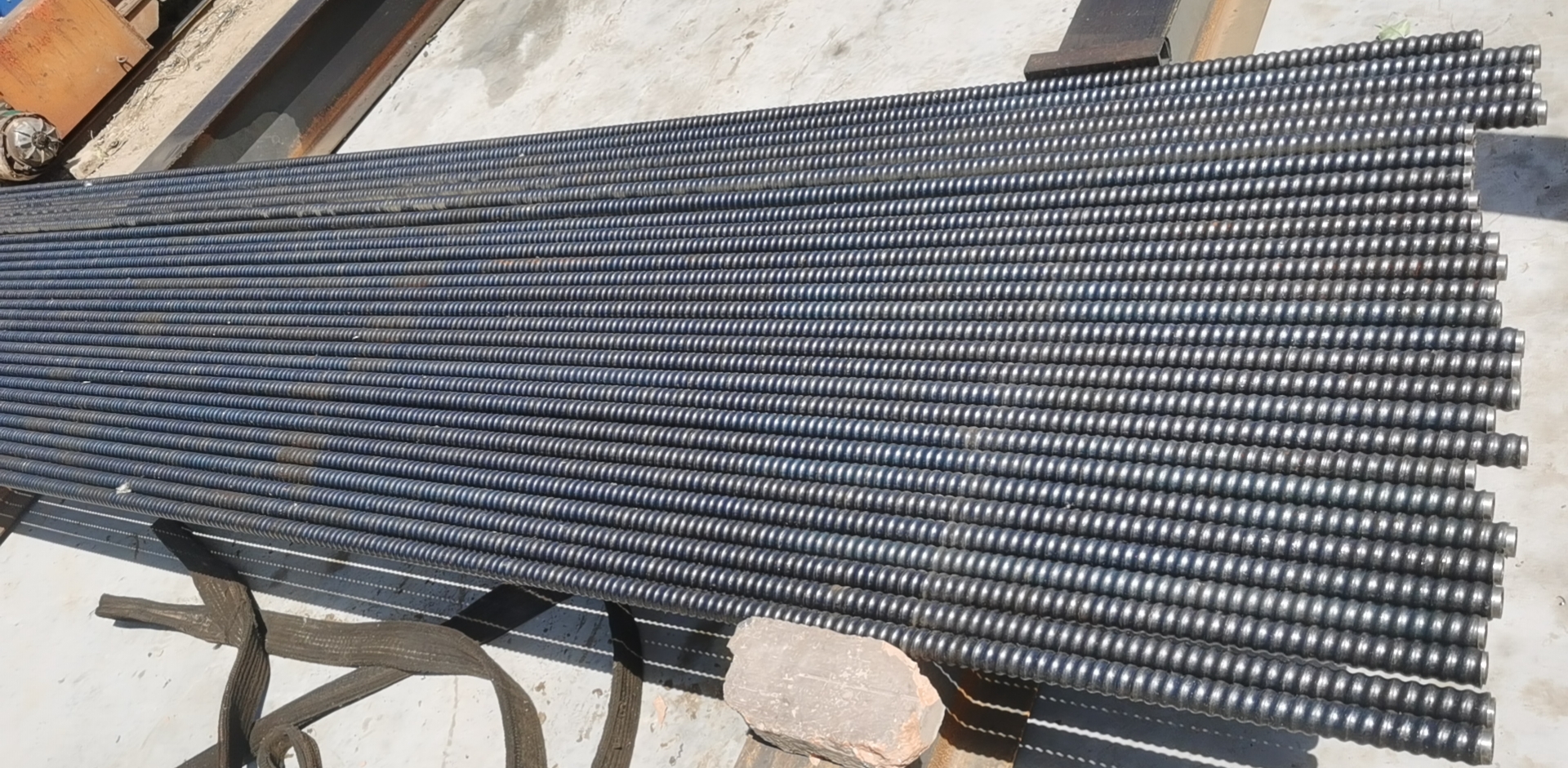

| Product Name | Hollow bolts / Rock bolts / Hollow grouting anchor rod / grouted
hollow anchor bar |
| Standards | GB1499.2-2007 GB 50086-2015 TB/T 3209-2008 |
| Grades | Carbon | 45#, sae1045, aisi1045 |
| Alloy | 40Cr, JIS SCr440, ASTM 5140, ISO 41Cr4 |
| Certificate | We are SGS approved enterprise, we issue MTC and be responsible for
the quality. |
| Outside diameter | 25mm, 25.4mm, 28mm, 28.3mm, 30mm, 32mm, or as per required |
| Thread standard | ISO |
| Tolerance for OD | +0mm/-0.2mm |
| Length | 4-12m fixed length, or as per the required |
| Surface treatment | Black / oiled, or as per required. |
| Heat treatment | Annealed |
| Test | Ultrasonic test |
| Packing | Wrapped by steel strips, wrapped by steel strips |
| Application | Surrounding rock system shoring and supporting |
| Shipping term | In bulk / FCL / LCL, partial shipment allowed |
| Shipping port | Qingdao, or Tianjin port |
| Third party inspection | Acceptable |
| Trade term | CIF, CFR, FOB, EXW |
| Delivery time | Within 7 days for stocks supply. |
| Paying term | 30%TT + 70% TT against copy of documents, or 30%TT + 70% LC. |
Advantage&Function:
1. Immediately initial stage support for rock, control the surrounding rock being out of shape, guarantee the stability of
surrounding rock.
2. Compared with solid rebar bolts, medium hollow design, makes the
hollow bolts get the function of grouting pipe, it well avoids the
waste and running off of mortar when grouting pipe pull out form
the rock layer under traditional technology.
3. Mortar injecting well filled, what is more it can reaching goal
of pressure mortar injection, finally the quality of project is
improved.
4. Due to each accessories or parts effecting, the bolt neutral
peculiarity is good. The mortar can fill every surface part of the
hollow bolts, so the bolts get rid of being rusty, finally we get
the goal of long term protection and supporting for rocks.
Installation Method:
- Using the jackdrill dig into the same depth of bolt length.
- Install the steel rising shell anchor head on the hollow bolt.
- Put hollow bolt into the ready hole.
- Install stopper mortar plug, base plate and nut on up side of
hollow bolt.
- Reversal the bolt, and make anchor head' rising shell grasp well of hole.
- Fulfill the mortar.
Introduction of Hollow Grouting Anchor Cable:
Hollow grouting anchor cable is suitable for medium geological
conditions, good surrounding rock permanent support, highway,
railway, tunnel advanced support, slope support, foundation pit
support and other projects.
Through the pressure grouting of hollow anchor body, the broken
rock mass can be consolidated, the rock mass can be improved, and
the good support purpose can be achieved.
By increasing the grouting pressure, the slurry can diffuse to the
rock cracks around the borehole while filling the borehole and
achieving full-length anchoring, which can bond and solidify the
surrounding rock and realize deep hole anchoring.
